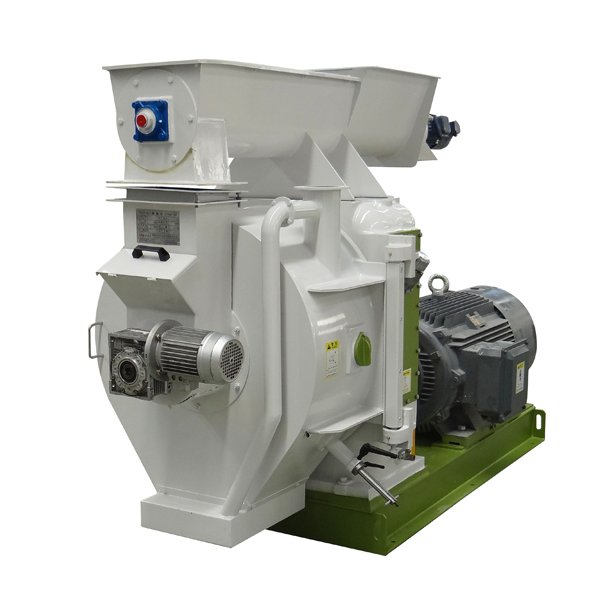

Biomass Pellet Mill: Transforming Raw Biomass into High-Value Energy

Description

Technical Specifications & Design Variations

Drive & Power Systems

• Main Motor Power: 90-630 kW (120-850 HP) for industrial models

• Feeder Motors: 1.5-7.5 kW variable speed drives

• Conditioner Motors: 11-45 kW with steam/liquid injection capability

• Control Systems: PLC-based with touchscreen interface

Pellet Mill Configurations

• Die Diameter: 420-1200mm (standard industrial sizes)

• Die L/D Ratio: 1:6 to 1:12 (biomass-optimized profiles)

• Roller Configuration: 2-3 rollers with heavy-duty bearings

• Die Speed: 120-300 RPM (material-dependent optimization)

Capacity & Performance Ranges

• Production Capacity: 1-15 t/h (depending on material and die specification)

• Pellet Density: 600-750 kg/m³ (achievable with proper conditioning)

• Power Consumption: 25-50 kWh/ton (complete system including auxiliaries)

• Pellet Durability: >95% PDI (Pellet Durability Index)

---

Feedstock-Specific Performance Data

Key Quality Parameters:

• Moisture Content: 8-10% (final pellet moisture)

• Ash Content: <6% (premium grade), <10% (industrial grade)

• Length Distribution: 95% between 10-40mm

• Fines Generation: <3% at production point

---

Advanced Conditioning & Process Control

Pre-conditioning Technology

• Steam Conditioning: 3-6% steam addition at 1-4 bar pressure

• Liquid Addition: 1-4% binders or additives with precision metering

• Retention Time: 90-240 seconds (adjustable based on recipe)

• Temperature Control: 75-95°C optimal conditioning temperature

Intelligent Process Automation

• Amperage Control: Automatic feeder adjustment based on main motor load

• Temperature Monitoring: Multiple zone temperature measurement and control

• Recipe Management: Storage for 50+ biomass formulations

• Remote Access: Network connectivity for performance monitoring and troubleshooting

Wear Management Systems

• Die-Roller Gap Control: Automatic adjustment for optimal compression

• Wear Monitoring: Vibration analysis and component life tracking

• Predictive Maintenance: AI-driven component failure prediction

• Quick-Change Systems: Hydraulic die and roller replacement

---

Industry Applications & Operational Benefits

Dedicated Pellet Production Facilities
Large-scale pellet mills form the heart of industrial pellet plants, producing standardized pellets for domestic heating and power generation markets. One Scandinavian pellet plant documented production of 150,000 tons annually with 98.5% availability, achieving consistent ENplus A1 quality certification through precise process control and conditioning optimization.

Integrated Wood Processing Operations
Sawmills and wood product manufacturers utilize pellet mills to convert residues into valuable energy products. A major sawmill operation achieved 95% utilization of wood residues while generating additional revenue streams and reducing waste disposal costs by 80%.

Agricultural Biomass Utilization
Farm-based pellet operations convert agricultural wastes into fuel for local heating and power applications. A midwestern agricultural cooperative documented 40% reduction in heating costs for member farms while creating new income from straw and crop residue pelletization.

Specialty Pellet Production
Specialized mills produce pellets for emerging applications including animal bedding, absorbents, and chemical carriers. A specialty manufacturer developed customized pellets with specific absorption characteristics, capturing premium pricing in industrial markets.

---

Operational Economics & Maintenance

Total Cost of Ownership Analysis

• Equipment Investment: $150,000-$600,000 (capacity and automation dependent)

• Installation & Commissioning: 20-30% of equipment cost

• Energy Consumption: $15-$35 per ton of pellets produced

• Wear Components: $8-$20 per ton for dies, rollers, and other consumables

Efficiency & Productivity Metrics

• Overall Equipment Effectiveness: 85-92% in optimized operations

• Pellet Mill Efficiency: 90-96% of theoretical maximum capacity

• Labor Productivity: 50-200 tons per operator shift

• Raw Material Utilization: 95-99% conversion efficiency

Maintenance Optimization

• Preventive Maintenance: Scheduled inspections and component replacement

• Condition Monitoring: Vibration, thermal, and performance analysis

• Spare Parts Strategy: Critical inventory optimization based on usage patterns

• Component Life Tracking: Digital records for predictive replacement

---

Environmental & Sustainability Impact

Carbon Reduction Contributions

• Fossil Fuel Displacement: 1 ton pellets replaces ~500 liters heating oil

• Carbon Neutrality: Sustainable biomass cycling with minimal net CO2

• Waste Utilization: Conversion of residues and wastes to energy

• Local Energy Security: Reduced dependence on imported fossil fuels

Emission Performance

• Combustion Characteristics: Low ash, consistent composition

• Transport Efficiency: High bulk density reduces transportation emissions

• Storage Stability: Low biological activity during storage

• Handling Safety: Reduced dust explosion risks compared to raw biomass

Certification & Standards Compliance

• Quality Standards: ENplus, ISO 17225, PFI certifications

• Sustainability Certification: FSC, PEFC, SBP sustainable sourcing

• Emissions Compliance: Meets strict air quality standards

• Safety Standards: Comprehensive workplace and machine safety

---

Future Technology Development

Innovation Directions

• Advanced Die Materials: Enhanced wear-resistant alloys and coatings

• Process Integration: Combined drying-pelletizing systems

• Digital Twins: Virtual simulation for optimization and training

• Alternative Binders: Natural binders reducing additive requirements

Market Evolution

• Torrefaction Integration: Combined torrefaction and pelletization

• Mobile Systems: Containerized pellet production units

• Carbon Capture: Integration with carbon capture and utilization

• Circular Economy: Enhanced integration with waste management systems

---

The biomass pellet mill continues to be the cornerstone technology enabling the utilization of biomass resources for renewable energy and sustainable materials. Its evolution from simple compression devices to sophisticated processing systems reflects the growing importance of biomass in global energy and materials strategies. As the world continues to transition toward circular economies and renewable resources, biomass pellet mills will play an increasingly vital role in converting diverse biomass streams into standardized, transportable, and efficient energy carriers while providing economic opportunities across agricultural and forest sectors.
