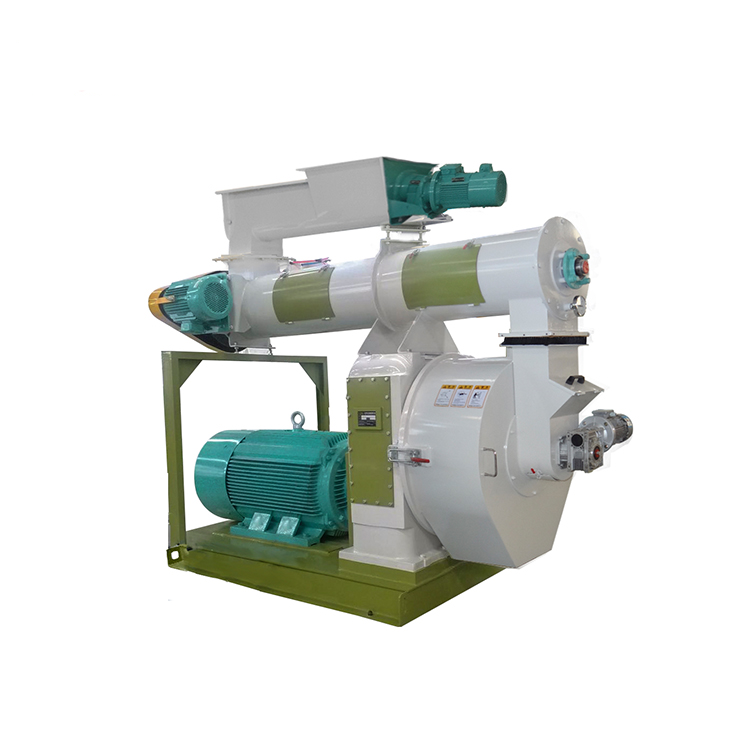

Pellet Mill with Conditioner: Advanced Feed & Biomass Pellet Production System

Description

Technical Specifications & System Configuration

Pellet Mill Drive System

• Main Motor Power: 90-400 kW (120-550 HP) for industrial models

• Feeder Motor: 1.5-5.5 kW variable frequency drive

• Conditioner Motor: 7.5-37 kW with speed control

• Gear Reducer: Hardened spiral bevel gears, torque capacity 30,000-180,000 Nm

Conditioning System Specifications

• Conditioner Types: Single-shaft, double-shaft, or triple-shaft configurations

• Retention Time: 30-240 seconds (adjustable via variable speed and baffle control)

• Steam Addition: 3-8% dry saturated steam at 2-6 bar pressure

• Liquid Addition: 1-5% capability with precision metering pumps

Pelletizing Components

• Die Diameter: 420-1000 mm (standard sizes)

• Die Thickness: 40-100 mm (L/D ratios 1:6 to 1:12)

• Roller Configuration: 2 or 3 rollers with tungsten carbide overlay

• Die Speed: 120-300 RPM (application optimized)

---

Performance Specifications by Application

Key Conditioning Parameters:

• Starch Gelatinization: 25-40% for standard feed applications

• Protein Denaturation: Controlled for nutritional preservation

• Lignin Plasticization: Critical for biomass pellet binding

• Microbial Reduction: Pasteurization effect at higher temperatures

---

Advanced Conditioning Technology

Steam Injection Systems

• Steam Quality: Dry saturated steam with <5% moisture content

• Injection Nozzles: Multiple injection points for uniform distribution

• Pressure Control: Precise regulation for consistent conditioning

• Condensate Management: Automatic removal for optimal heat transfer

Liquid Addition Capabilities

• Multiple Liquid Lines: Fat, molasses, binders, or additives

• Precision Metering: Mass flow meters with ±1% accuracy

• Atomization Systems: High-pressure nozzles for uniform distribution

• Recipe Control: Automatic adjustment based on formulation

Retention Time Optimization

• Variable Speed Drives: Adjustable paddle speed for retention control

• Baffle Systems: Adjustable weirs and internal configurations

• Mixing Intensity: Controlled shear for homogeneous conditioning

• Thermal Management: Insulated housings with minimal heat loss

---

Industry Applications & Operational Benefits

Commercial Feed Manufacturing
Conditioned pellet mills enable feed manufacturers to produce highly durable pellets with improved nutritional availability. The controlled thermal treatment enhances starch digestibility while maintaining heat-sensitive nutrient integrity. One major feed company documented a 25% reduction in pellet fines and 15% improvement in feed conversion ratios after implementing advanced conditioning technology.

Biomass Pellet Production
For biomass applications, proper conditioning is essential for activating natural binders and creating durable pellets without synthetic additives. The precise moisture and temperature control enables consistent pellet quality from variable biomass feedstocks. A biomass producer achieved 96% pellet durability with 40% lower power consumption through optimized conditioning parameters.

Aquaculture Feed Production
The conditioner enables the high moisture and thermal treatment required for water-stable aqua feed pellets. Extended retention times and precise temperature control create highly digestible, water-resistant pellets. An aqua feed manufacturer increased pellet water stability from 2 to 6 hours while improving feed conversion ratios by 18%.

Specialty Pellet Applications
For specialized products including pet food, laboratory animal feed, and industrial pellets, the conditioning system provides the precise control needed for unique product specifications. A specialty manufacturer developed pellets with specific dissolution rates and functional characteristics through customized conditioning protocols.

---

Operational Economics & Maintenance

Total Cost of Ownership Analysis

• Equipment Investment: $120,000-$400,000 (capacity and features dependent)

• Installation Costs: 20-35% of equipment cost (utilities and foundations)

• Energy Consumption: $12-$30 per ton (steam, power, and compressed air)

• Wear Components: $6-$15 per ton for dies, rollers, and conditioner parts

Efficiency & Productivity Metrics

• Production Efficiency: 85-95% of theoretical maximum capacity

• Pellet Quality Consistency: 95-98% within specification

• Energy Utilization: 30-50% reduction vs unconditioned systems

• Raw Material Flexibility: Ability to process challenging formulations

Maintenance Optimization

• Conditioner Maintenance: Regular inspection of paddles, shafts, and liners

• Steam System Service: Trap maintenance and condensate management

• Liquid System Care: Nozzle cleaning and pump calibration

• Preventive Schedule: Systematic inspection and component replacement

---

Process Control & Automation

Intelligent Control Systems

• Recipe Management: Storage for 100+ formulations with automatic parameter adjustment

• Conditioning Optimization: Automatic adjustment based on raw material characteristics

• Production Monitoring: Real-time tracking of quality and efficiency parameters

• Data Analytics: Historical analysis for continuous improvement

Quality Assurance Features

• Temperature Profiling: Multiple zone temperature monitoring and control

• Moisture Management: Online moisture measurement and automatic adjustment

• Pellet Quality Monitoring: Real-time durability and temperature measurement

• Documentation: Automatic batch records and quality documentation

Safety & Compliance Systems

• Steam Safety: Pressure relief and automatic shutdown systems

• Access Safety: Interlocked guards with zero-energy verification

• Hygiene Systems: CIP capabilities and sanitary design features

• Environmental Compliance: Emissions monitoring and control

---

Future Technology Development

Innovation Directions

• Advanced Process Control: AI-driven optimization of conditioning parameters

• Energy Integration: Waste heat recovery and energy-efficient steam generation

• Smart Wear Monitoring: IoT sensors for predictive component replacement

• Hybrid Conditioning: Combination of steam, microwave, and other thermal technologies

Market Evolution

• Sustainability Focus: Reduced energy and water consumption

• Digital Integration: Enhanced connectivity and data exchange

• Flexibility Demands: Quick changeover between diverse products

• Global Standards: Harmonization of safety and quality requirements
